Core OVN BGP integration¶
https://bugs.launchpad.net/neutron/+bug/2111276
OVN 25.03 introduces BGP-related capabilities that provide parity with the current ovn-bgp-agent underlay exposing method. This spec is to introduce a design using the OVN capabilities integrated with Neutron to replace the ovn-bgp-agent.
Problem Description¶
The ovn-bgp-agent is another process running on compute and network nodes. There is a lot of processing happening when new workloads are created or moved around because the agent needs to pay attention to these changes and rewire configuration on the node as needed. As OVN is well aware of the locality of its resources we can leave all the processing up to OVN and only manage underlying BGP OVN topology in Neutron and still use the pure L3 spine-and-leaf topology for the dataplane traffic.
Acronyms used in this spec¶
BGP: Border Gateway Protocol
ECMP: Equal-Cost Multi-Path
LRP: Logical Router Port
LSP: Logical Switch Port
LS: Logical Switch
LR: Logical Router
VRF: Virtual Routing and Forwarding
FRR: Free Range Routing (https://github.com/FRRouting/frr)
Proposed Change¶
This spec proposes to introduce a new Neutron service plugin that manages the underlying BGP topology in OVN. Its main purpose is to make sure the OVN resources related to BGP are correctly configured at all times by being a reconciler over those resources. Additionally it takes care of scaling in and out the compute nodes because every compute node needs to have their own bound resources, such as a router and a logical switch with a localnet port.
There is no need to make any changes to API or database models. However, there is a need to modify Neutron OVN DB sync scripts to not monitor the underlying BGP resources. Possibly this was already planned to exist in Neutron with the spec at [1] so we need to revive the work. That can be achieved by setting an explicit tag in the external_ids column of the BGP managed resources that Neutron would not touch. Also, we need to make sure on the presentation layer that all the underlying BGP resources are not exposed to the users through an API. For example, a router list command must not return the BGP routers.
Each compute node requires a running FRR instance that monitors the local VRF and advertises the routes to the BGP peers. It is the installer’s responsibility to configure the FRR instance to use the correct BGP parameters and to connect to the correct BGP peers.

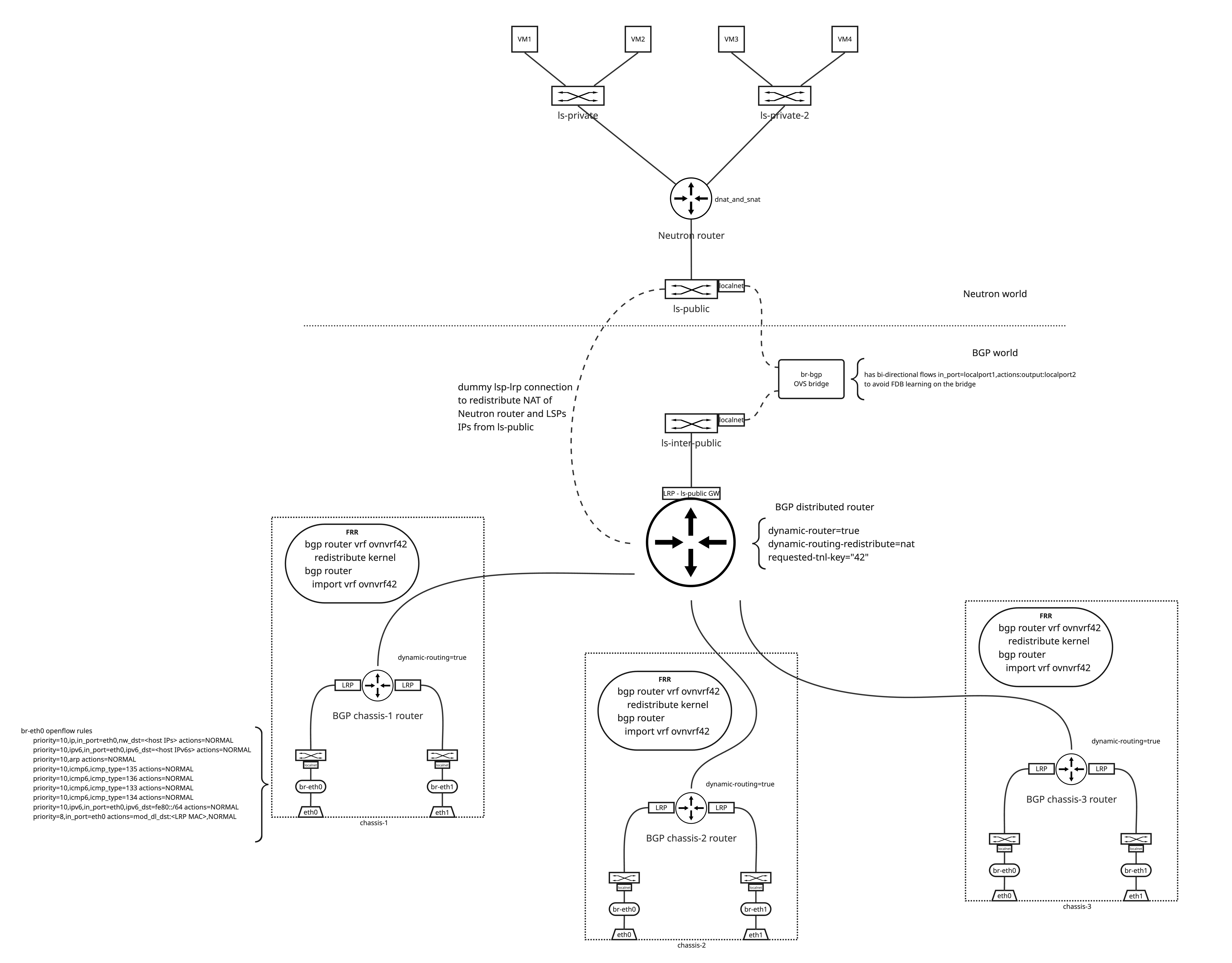

As it is easier to understand the topology visually than through description, the following diagram shows the underlying BGP logical topology in OVN. For better resolution, it is recommended to open the image in a new tab.
OVN BGP Logical Topology (click for full resolution)
BGP distributed logical router¶
A new router with the OVN BGP enabled capabilities is introduced, the router is named “BGP distributed router” in the diagram above, with dynamic routing flag enabled. The router is connected to the provider logical switch with a dummy connection. This connection is not used for any traffic and serves only to logically connect the logical switch and the BGP router so the northd can create entries in the Advertised_Route table in the Southbound DB for the IPs that need to be advertised.
The router also connects to a LS with a localnet port. This LS is connected to the provider bridge br-bgp that needs to be configured on every chassis since the traffic here is distributed and can happen on any node. This bridge connects to the ls-public LS through the localnet port created by Neutron. This LS is what typically connects the physical network in the traditional deployments. We need to have localnet ports to avoid OVN sending traffic over the geneve tunnel to the node hosting the logical router gateway.
The BGP distributed router is connected to the per-chassis logical routers through peered LRPs and bound to the corresponding chassis. The LRs per chassis are described in the next section. Because the BGP router is distributed we need to pick the right LRP so the traffic is not forwarded to a different chassis. For example, if there is egress traffic coming from a tenant LSP on chassis A, the BGP distributed router needs to route the traffic to the LRP on chassis A. For this we will use logical routing policy and the is_chassis_resident match. An example of the logical routing policy is shown below:
action : reroute
bfd_sessions : []
chain : []
external_ids : {}
jump_chain : []
match : "inport==\"lrp-bgp-main-router-to-ls-interconnect\" && is_chassis_resident(\"cr-lrp-bgp-main-router-to-bgp-router-r0-compute-0\")"
nexthop : []
nexthops : ["169.254.0.1"]
options : {}
priority : 10
The nexthop in this case is the LRP on the chassis A and for now must be an IPv4 as OVN currently contains a bug that prevents the use of IPv6 LLAs as nexthops, reported at [2]. The policy is implemented only on the chassis defined in is_chassis_resident and hence the traffic will always remain local to the chassis. Because the policy is at a later stage in the LR pipeline we need to create a logical router static route in order to pass the routing phase. Hence the BGP distributed logical router needs to contain two static routes. One to route ingress traffic to the provider network and one unused route that serves only to pass the routing stage in the pipeline until the reroute policy is hit.
The first static route can look like this:
bfd : []
external_ids : {}
ip_prefix : "192.168.111.0/24"
nexthop : "192.168.111.30"
options : {}
output_port : lrp-bgp-main-router-to-ls-interconnect
policy : []
route_table : ""
selection_fields : []
where the ip_prefix is the provider network prefix and the output_port is the LRP connecting to the provider LS. The nexthop is the LRP of the Neutron router port that serves as a gateway.
The second static route is unused and can look like this:
bfd : []
external_ids : {}
ip_prefix : "0.0.0.0/0"
nexthop : "192.168.111.30"
options : {}
output_port : []
policy : []
route_table : ""
selection_fields : []
The route needs to match all traffic and the nexthop doesn’t matter because it will be determined by the reroute policies based on the chassis locality. The ingress logical router pipeline with the route implemented looks like this:
... the other routes are here but none matches 0.0.0.0/0 ...
table=15(lr_in_ip_routing ), priority=4 , match=(reg7 == 0 && ip4.dst == 0.0.0.0/0), action=(ip.ttl--; reg8[0..15] = 0; reg0 = 192.168.111.30; reg5 = 192.168.111.30; eth.src = 00:de:ad:10:00:00; outport = "lrp-bgp-main-router-to-ls-interconnect"; flags.loopback = 1; reg9[9] = 1; next;)
table=15(lr_in_ip_routing ), priority=0 , match=(1), action=(drop;)
table=16(lr_in_ip_routing_ecmp), priority=150 , match=(reg8[0..15] == 0), action=(next;)
table=16(lr_in_ip_routing_ecmp), priority=0 , match=(1), action=(drop;)
table=17(lr_in_policy ), priority=10 , match=(inport=="lrp-bgp-main-router-to-ls-interconnect" && is_chassis_resident("cr-lrp-bgp-main-router-to-bgp-router-r0-compute-0")), action=(reg0 = 169.254.0.1; reg5 = 169.254.0.2; eth.src = 00:de:ad:00:10:00; outport = "lrp-bgp-main-router-to-bgp-router-r0-compute-0"; flags.loopback = 1; reg8[0..15] = 0; reg9[9] = 1; next;)
As we need to get to the stage where the reroute policy is hit, we need to pass the lr_in_ip_routing stage first and this stage is implemented with a static route. That means we match the 0.0.0.0/0 prefix using the first rule and then later we change the output_port with the last rule with its reroute action. If the static route would not be present, the traffic would be dropped with the second rule containing the drop action.
Per-chassis logical routers¶
There is also a logical router created and bound to each chassis. These routers serve to learn ECMP routes from the BGP peers and to forward traffic between the provider bridges and the BGP distributed router.
For cases where the compute nodes share data plane and control plane traffic over the same spine-and-leaf topology, there is a need to maintain openflow rules on the provider bridge that differentiate traffic between control plane, and hence forward traffic to the host, and the dataplane traffic that needs to go to the OVN overlay. The following openflow rules could be used to achieve this:
priority=10,ip,in_port=eth0,nw_dst=<host IPs> actions=NORMAL
priority=10,ipv6,in_port=eth0,ipv6_dst=<host IPv6s> actions=NORMAL
priority=10,arp actions=NORMAL
priority=10,icmp6,icmp_type=133 actions=NORMAL
priority=10,icmp6,icmp_type=134 actions=NORMAL
priority=10,icmp6,icmp_type=135 actions=NORMAL
priority=10,icmp6,icmp_type=136 actions=NORMAL
priority=10,ipv6,in_port=eth0,ipv6_dst=fe80::/64 actions=NORMAL
priority=8,in_port=eth0 actions=mod_dl_dst:<LRP MAC>,output:<patch_port_to_ovn>
Those rules match traffic that is destined to the host and forward it to the host. Everything else is forwarded to the OVN overlay. The patch_port_to_ovn is a patch port that ovn-controller created based on the ovn-bridge-mappings configuration.
The router itself needs to implement routes for traffic coming from the provider network and for traffic coming from the OVN overlay. For ingress provider network traffic, the routes can look as follows:
bfd : []
external_ids : {}
ip_prefix : "192.168.111.0/24"
nexthop : "169.254.0.2"
options : {}
output_port : lrp-bgp-router-r0-compute-0-to-bgp-main-router
policy : []
route_table : ""
selection_fields : []
where ip_prefix matches the subnet of the provider network and the nexthop is set to the address of the LRP attached to the BGP distributed router and the output_port is set to its peer LRP.
The egress traffic from the OVN overlay needs to be routed with ECMP to the BGP network. This can be achieved with the following static routes for each BGP peer:
bfd : []
external_ids : {}
ip_prefix : "0.0.0.0/0"
nexthop : "100.64.0.1"
options : {}
output_port : lrp-bgp-router-r0-compute-0-to-ls-r0-compute-0-eth0
policy : []
route_table : ""
selection_fields : []
bfd : []
external_ids : {}
ip_prefix : "0.0.0.0/0"
nexthop : "100.65.0.1"
options : {}
output_port : lrp-bgp-router-r0-compute-0-to-ls-r0-compute-0-eth1
policy : []
route_table : ""
selection_fields : []
Traffic flow¶
This section describes the traffic flow from and to a LSP hosted on a chassis.
An example of the traffic from the external network to a VM with a Floating IP on chassis 1¶
Because of the dummy connection between the ls-public LS and the BGP distributed router, OVN creates an Advertised_Route entry for the Floating IP. Because the associated logical port is bound to the chassis 1, OVN populates the local VRF on the chassis 1 with the route to the Floating IP and the local FRR instance advertises the route to the BGP peers.
The fabric learns the route to the Floating IP from the BGP peers and forwards the traffic to the chassis 1 to either eth0 or eth1 because of the ECMP routes.
The traffic does not match any of the higher priority openflow rules on the provider bridge and matches the last rule. The rule changes the destination MAC to the LRP MAC address of the per-chassis router associated with the NIC and the traffic is forwarded to OVN. The traffic enters the per chassis logical router that has Logical_Static_Route configured to forward the traffic to the distributed BGP router. The BGP distributed router is configured to forward the traffic to the ls-inter-public switch with a Logical_Static_Route matching the destination IP with the provider network subnet and through the br-bgp provider bridge the traffic gets to the ls-public logical switch. From here the traffic follows the same path as without BGP and is NAT’ed by the Neutron router.
An example of the traffic from a VM with a Floating IP on chassis 1 to the external network¶
The egress VM traffic is NAT’ed by the Neutron router and the traffic is forwarded to the provider network gateway which is connected to the ls-public LS. Because of the presence of the localnet ports the traffic gets through the br-bgp bridge to the distributed BGP router where it matches the artificial Logical_Router_Static_Route to skip the lr_in_ip_routing stage in the pipeline and will be matched with the BGP router policy based on the chassis locality. The reroute action of the policy will pick the right LRP that is connected to the per-chassis router. Here the traffic matches static routes per peer and with the ECMP is forwarded to the BGP networks.
Testing¶
Existing tempest tests should provide good regression testing. We can reuse the existing topology from the ovn-bgp-agent project that peer with VMs simulating a BGP router.
Implementation¶
The implementation is split into two parts. The first part creates the service plugin that takes care of the BGP topology in OVN including the configuration of static routes and router policies.
The second part is an OVN agent extension [3] that configures per chassis host configurations. The OVN agent itself is orthogonal to the BGP service plugin and can be replaced with any third-party tool that takes care of the node dynamic configuration. The OVN agent extension is responsible for steering the traffic to the OVN and for configuring the per chassis host configurations such as adding ovn-bridge-mappings per the BGP peer, and for implementing local openflow rules to differentiate traffic between the control plane and the dataplane. It also monitors patch ports on the br-bgp and creates direct connection between the localnet ports to avoid any FDB learning on the bridge. An example of the simple openflow rules is shown below:
priority=10,in_port=2, actions=output:3
priority=10,in_port=3, actions=output:2
where 2 is the patch port to the logical switch connected to the BGP distributed router and 3 is the patch port connected to the Neutron public switch.
Where BGP is used with Neutron or not is determined by enabling the service plugin and the OVN agent extension.
As it is written in the first paragraph of this spec, the BGP support in OVN was introduced in 25.03. Therefore the BGP service plugin requires OVN 25.03 or later.
Assignee(s)¶
Jakub Libosvar <jlibosva@redhat.com>
Documentation¶
Deployment guide will be written in describing how to enable the service plugin and what needs to be configured on the nodes, such as steering traffic to the OVN or configuration of a BGP speaker advertising the routes to its peer. An example using FRR configuration will be introduced so the operators have a reference for the configuration.
